Slew drive

Structural characteristics,performance,and application scope

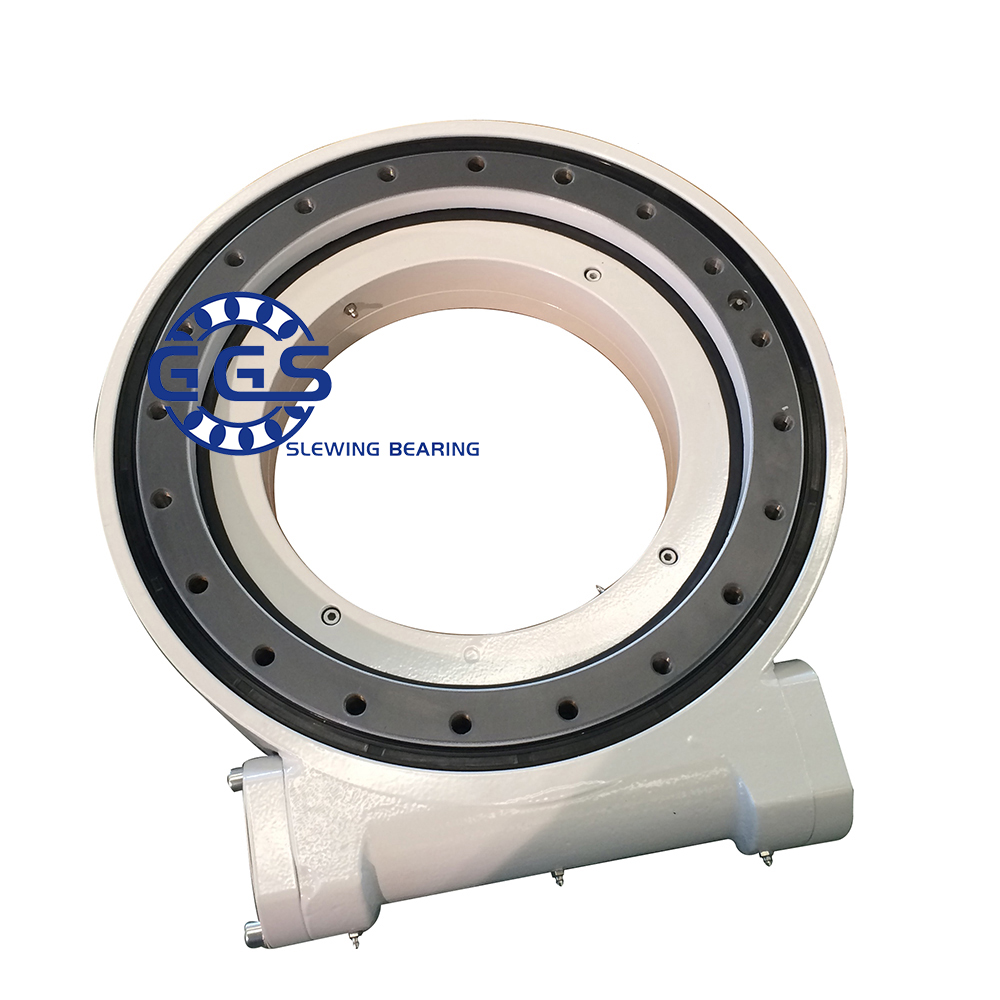

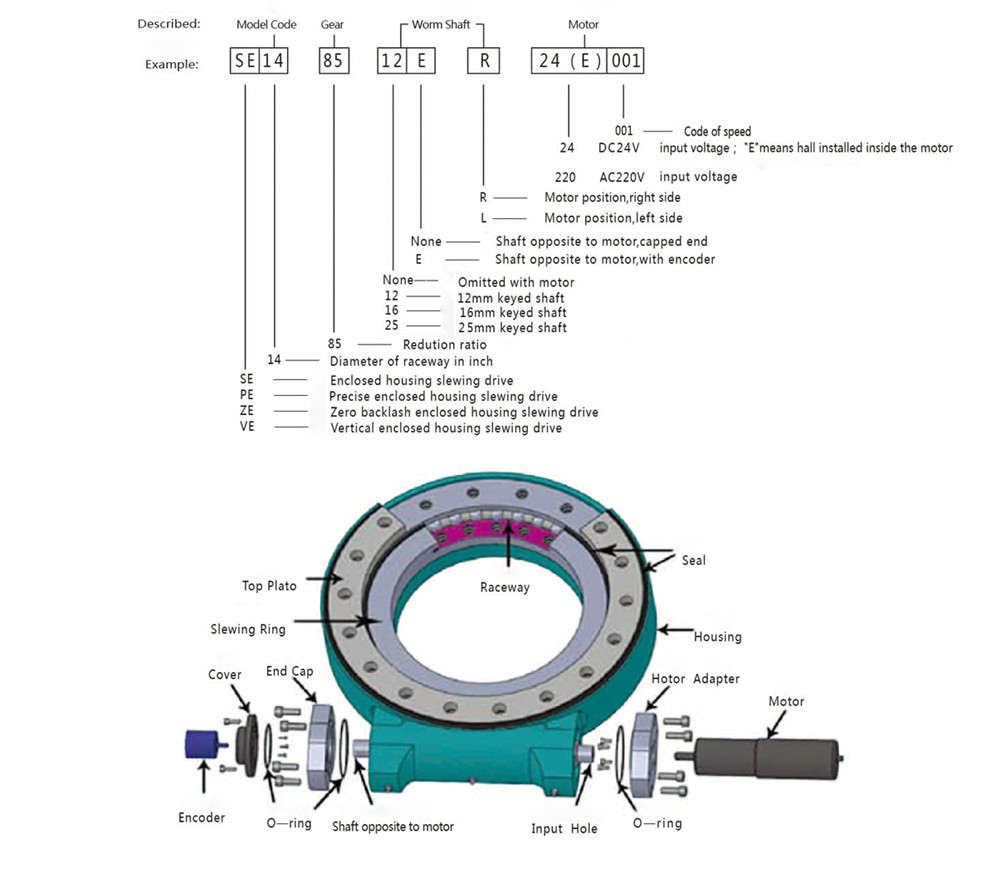

Slewing drive is consist of slewing bearing,worm shaft,housing,bearing,motor and so on. Motor drive the worm shaft, the outer ring of slewing bearing will rotate, the outer ring output the torque through flange while the inner ring of slewing bearing is fixed in housing.Slewing drive is able to sustain more axial load, radial load and tilting moment.Turntable or frame rotate at azimuth and elevation driven by slewing drive.Typical applications include solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger derricks, and automotive lifts.
